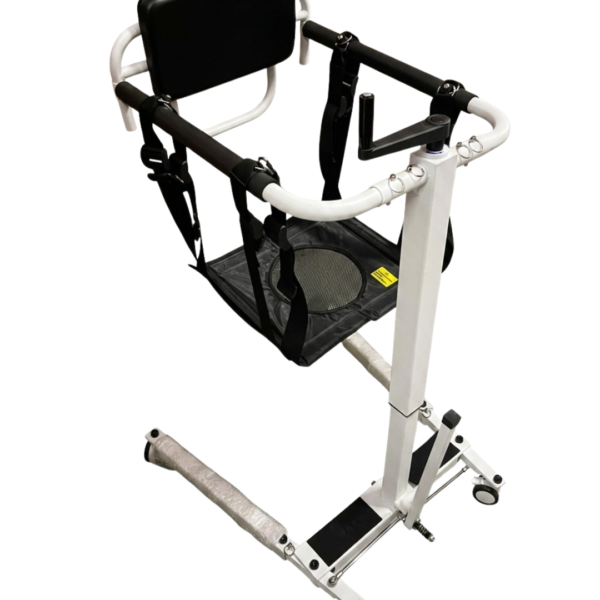

Patient Lifter – Crank Lift for Patient Transfer

Key Features

• Manual Crank Mechanism: Enables smooth, low-effort height adjustments to safely transfer patients without back strain.

• Expandable Base Legs: Adjustable leg width (64.5cm to 128cm) fits easily around wide wheelchairs, recliners, and bed frames.

• Integrated Commode Function: Features a removable seat with an oval cutout (22cm x 25cm) for hygienic toilet transfers.

• Removable Cushioning: Removable backrest and seating components allow quick cleaning, disinfection, and configuration adjustments.

• High Weight Capacity: Heavy-duty steel construction safely supports patient weights up to 130 kg.

Specifications

• Adjustable Total Height: 98 cm – 135 cm

• Total Chassis Length: 84.5 cm

• Leg Width Adjustment: 64.5 cm – 128 cm

• Seat Dimensions: 45.5 cm (W) × 41.5 cm (L)

• Width Between Armrests: 57 cm

• Backrest Dimensions: 40 cm (W) × 22.5 cm (H)

• Commode Cutout Size: 22 cm × 25 cm (Oval-Shaped)

• Maximum Weight Capacity: 130 kg

• Primary Applications: Patient Transfers, Bed-to-Wheelchair Transport, Toilet & Commode Assistance, and Home Care Servicing
